IoT 百萬設備架構選型 Part 3：運維、成本與可靠性

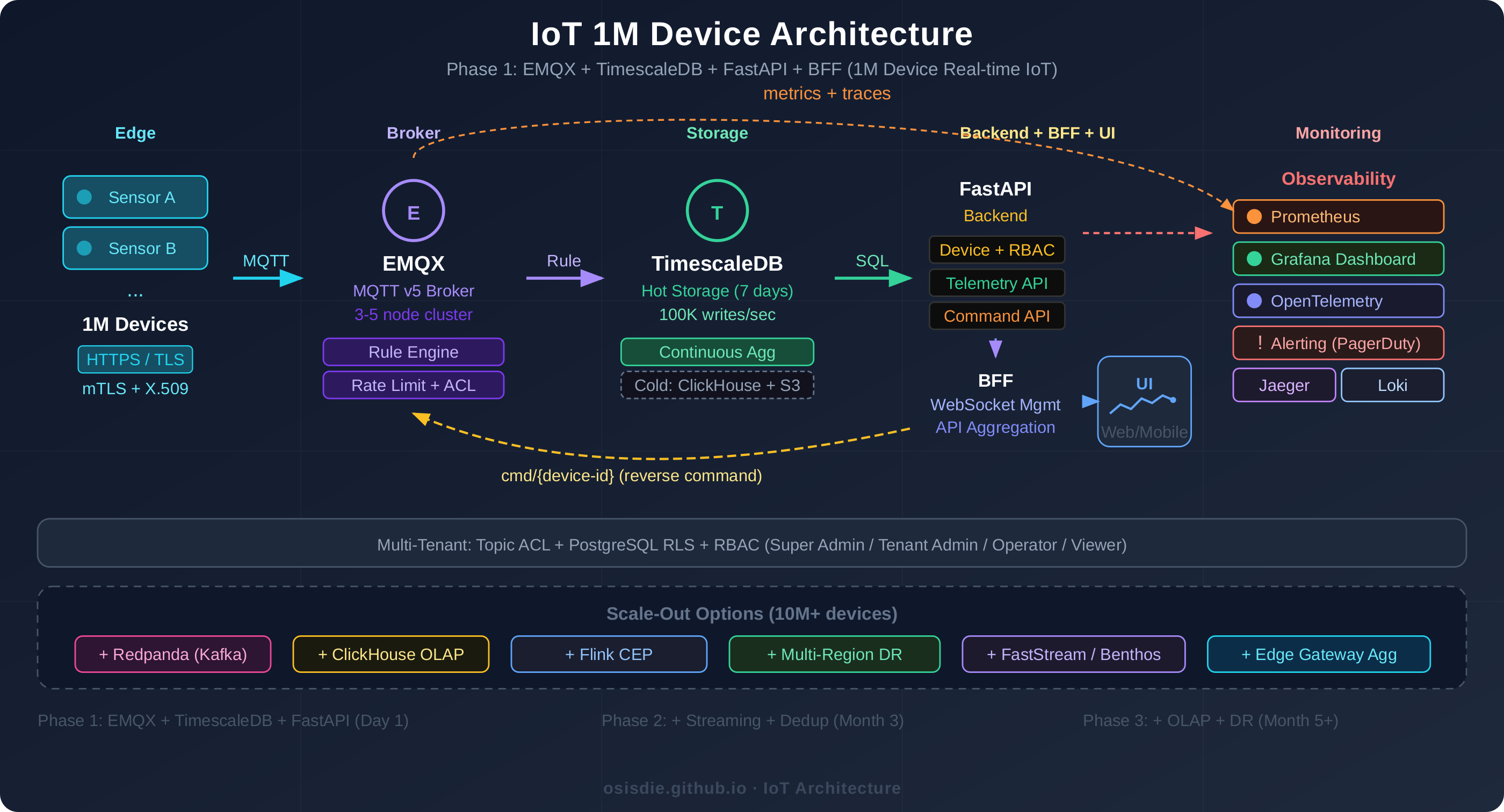

IoT 1M Device Architecture Overview — Phase 1 核心架構：EMQX + TimescaleDB + FastAPI + BFF + OpenTelemetry

English Abstract — Part 3 of 3. Operations: three-layer rate limiting (EMQX → Rule Engine → App), content-based dedup, anomaly detection. Edge resilience: exponential backoff + jitter, offline buffering (RAM/SQLite/MQTT Session Expiry). Server HA with RPO/RTO per component. OpenTelemetry end-to-end tracing. Multi-region DR (Active-Passive). Team onboarding risk and phased rollout.

系列文章： Part 1 核心架構 Part 2 安全與多租戶 Part 3 運維與可靠性（本篇）

Rate Limiting + Dedup

設備異常（firmware bug、sensor malfunction）可能瞬間灌入大量資料：

flowchart LR
    D[Faulty Device] -->|10 msg/s limit| E[EMQX]
    E -->|SQL filter| T[TimescaleDB]
    T -->|circuit breaker| A[FastAPI]
    E -->|exceed 10x| X1[Disconnect]

層	限制	超限動作	說明
EMQX	10 msg/s, 50 KB/s	Throttle → disconnect	第一道防線，per-client
Rule Engine	SQL filter + dedup	丟棄不符條件	基本過濾，無需代碼
FastAPI	Per-tenant rate limit	Alert + reject	業務邏輯層防護

Dedup 策略

層	策略
MQTT Broker	Packet ID tracking
Rule Engine	SQL WHERE + timestamp 比對
Application	`(device_id, timestamp, hash)`
Database	`ON CONFLICT DO NOTHING`

異常偵測

類型	偵測	處理
超頻上報	Rate > 10x	Broker throttle
範圍異常	超 physical range	丟棄 + 告警
時序異常	偏差 > 5min	標記 suspect
靜默設備	> 3x 正常間隔	LWT → offline 告警

Edge Resilience

Reconnect + Offline Buffer

stateDiagram-v2
    [*] --> Connected
    Connected --> Disconnected: Network down
    Disconnected --> Retry1s: Retry 1s
    Retry1s --> Connected: OK
    Retry1s --> Retry2s: Fail
    Retry2s --> RetryMax: Backoff + jitter
    RetryMax --> Connected: OK
    note right of Disconnected: Write to local buffer
    note right of Connected: Drain buffer on reconnect

Buffer	容量	持久性	適用
Ring buffer (RAM)	1-10K msg	斷電失	MCU
SQLite on flash	100K+ msg	持久	Gateway
MQTT v5 Session Expiry	Broker 端	Broker 存活時	所有

QoS 1：PUBLISH → 等 PUBACK → timeout 5s → pending → 重連後重送。搭配 application dedup 不重複。

Thundering Herd

Broker 恢復 → 1M 設備同時重連。Device jitter 分散 0-5min + EMQX max_conn_rate=10000/s → 100s 有序恢復。

Server-Side HA

組件	HA 策略	RPO	RTO
EMQX	3-5 node RAFT	0	<30s
TimescaleDB	Patroni + streaming replication	~0	<30s
ClickHouse	ReplicatedMergeTree	~0	<60s
FastAPI	K8s 3+ replicas	—	<5s

Multi-Region DR

層	AWS	GCP
MQTT	EMQX cluster linking	跨 Zone
DB	RDS cross-region replica	Cloud SQL cross-region
Cold	S3 CRR	GCS Dual-Region
DNS	Route 53 failover	Cloud DNS routing

Active-Passive： Primary 處理流量，Secondary 有 replica，DNS failover → RPO ~min, RTO ~5-10min。

Observability

Day 1 就做好，不是事後補。

flowchart TD
    E[EMQX] -->|metrics| P[Prometheus]
    A[FastAPI] -->|traces| OT[OpenTelemetry]
    BF[BFF] -->|traces| OT
    T[TimescaleDB] -->|metrics| P
    OT --> J[Jaeger]
    OT --> P
    OT --> L[Loki]
    P --> G[Grafana]
    J --> G
    L --> G

組件	監控重點	告警閾值
EMQX	連線數、msg rate、Rule Engine	> 900K、deny > 1%
TimescaleDB	Write throughput、disk	< 80K/s、> 80%
FastAPI	Latency、error rate	P99 > 200ms
BFF	WS connections	> 10K

每條 telemetry 帶 trace_id（Rule Engine 注入），Jaeger 一鍵查 device → Dashboard 完整鏈路。

雲端 vs 地端

服務	AWS	GCP	地端
Broker	EMQX Cloud	EMQX Cloud	EMQX on K8s
K8s	EKS	GKE Autopilot	K3s
Hot DB	Timescale Cloud	Timescale Cloud	VM
Warm DB	ClickHouse Cloud	ClickHouse Cloud	K8s
Cold	S3	GCS	MinIO
Cold 查詢	Athena	BigQuery	DuckDB
監控	CloudWatch	Cloud Monitoring	Grafana
月費	~$17-33K	~$17-33K	~$8-15K + ops

GKE Autopilot 比 EKS 易上手。BigQuery 按 scan 計價對 IoT 分析較划算。

成本估算

1M 設備月費（雲端 managed）

組件	AWS 月費	GCP 月費	說明
EMQX Cloud (3 node)	~$8-15K	~$8-15K	MQTT Broker
TimescaleDB	~$3-5K	~$3-5K	Hot 7d + Continuous Agg
ClickHouse Cloud	~$2-4K	~$2-4K	Warm 30-90d 分析
S3/GCS (~50 TB)	~$1-2K	~$1-2K	Cold 長期歸檔
K8s (Backend+BFF)	~$2-4K	~$2-4K	3-5 nodes
Observability	~$1-3K	~$1-3K	Grafana + OTel
合計	~$17-33K	~$17-33K
+ Redpanda (>1M)	+$5-10K	+$5-10K	Scale-out 時加入

不同規模

規模	架構	月費	說明
< 10 萬	EMQX + TimescaleDB + FastAPI + BFF	~$3-8K	2-3 人團隊
10-100 萬	+ ClickHouse + S3	~$10-20K	本文核心架構
> 100 萬	+ Redpanda + FastStream + DR	~$30-60K	Event streaming

建議： PoC 10 萬裝置先驗證（成本約 1/5），精算後再決定 managed vs self-hosted。

團隊與交付風險

風險	緩解	說明
核心 4 系統運維	OTel Day 1 + Grafana	統一 dashboard 降低認知負擔
新人 2-3 月上手	從極簡版開始	逐步加組件，避免一次全上
多租戶 ACL 出錯	Unit test + staging	配錯即資安事件
成本超預期	PoC 10 萬裝置	精算後再決定 managed vs self-hosted

導入順序：

Phase 1 (Month 1-2): EMQX + TimescaleDB + FastAPI + BFF + OTel
Phase 2 (Month 3-4): + ClickHouse + S3
Phase 3 (Month 5-6): + Multi-tenant + DR
Phase 4 (>1M):       + Redpanda + FastStream

後續考慮

OTA firmware update pipeline
Edge computing / gateway aggregation
Active-Active geo-replication（EMQX cluster linking + CRDT）

系列連結

Part 1：核心架構 — EMQX + TimescaleDB + FastAPI + BFF、成本估算
Part 2：安全與多租戶 — HTTPS/TLS、mTLS、Cert Rotation、RBAC、Topic ACL
Redpanda Documentation — Event Streaming（Scale-out >1M）
