IoT 百萬設備架構選型 Part 1：核心架構與技術選型

English Abstract — Part 1 of 3. Core architecture for 1M IoT devices: EMQX (Rule Engine direct write) → TimescaleDB (hot 7d + Continuous Aggregates) → FastAPI → BFF → Dashboard. Includes protocol selection, broker comparison, three-tier storage, BFF design, cost estimation (~$17-33K/month), and AWS/GCP mapping. Scale-out (>1M): add Redpanda + ClickHouse.

前言

1 百萬台設備、每 10 秒回報一次 = 100K writes/sec、~1.7 TB/day。

本系列採用漸進式架構 — Phase 1 只需 4 個核心組件即可上線：

系列文章： Part 1 核心架構（本篇）

Part 2 安全與多租戶

Part 3 運維與可靠性

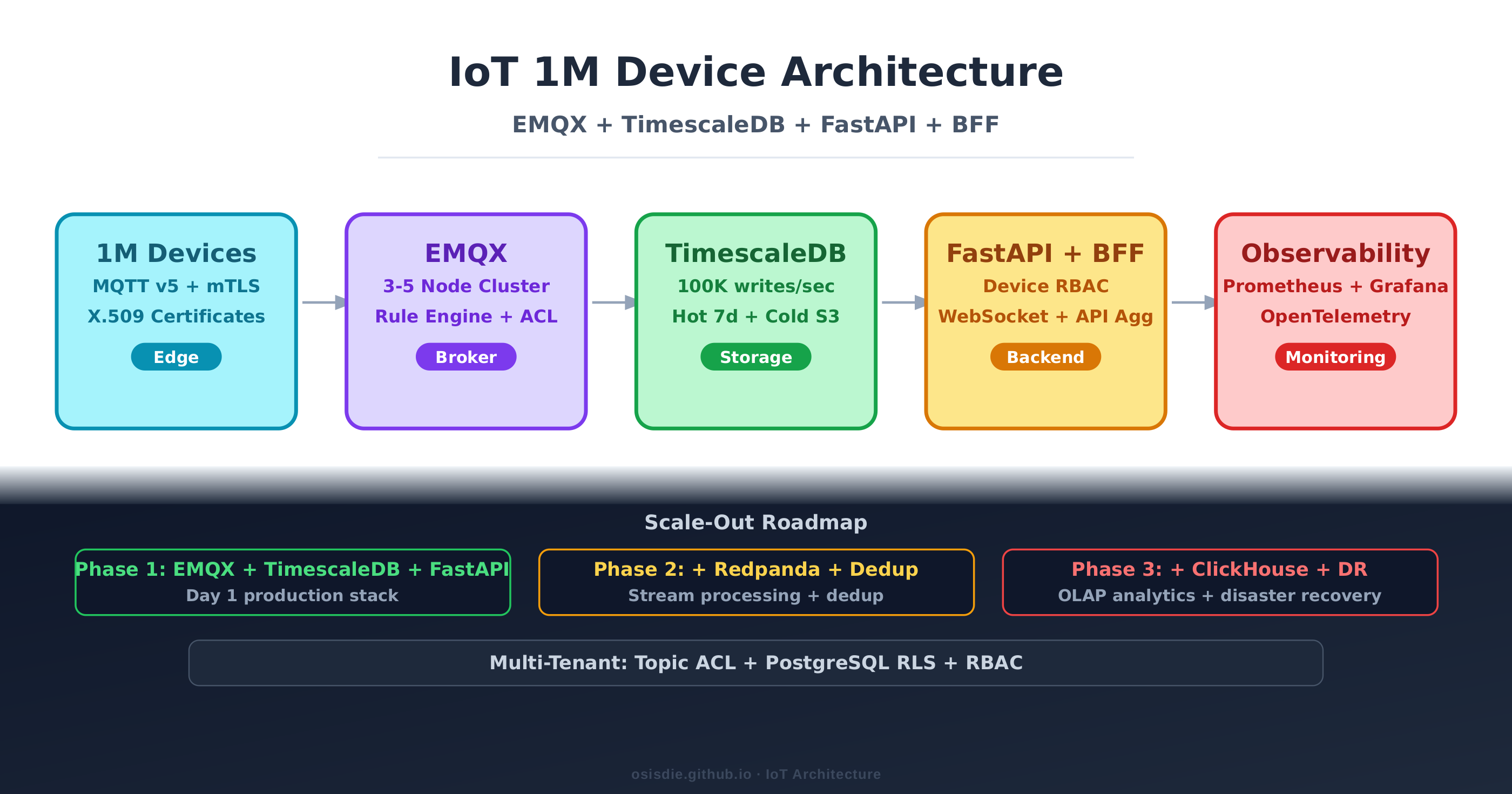

架構資料流

Telemetry（Device → Dashboard）

flowchart LR
    D[Device] -->|MQTT| B[EMQX]
    B -->|Rule Engine| T[TimescaleDB]
    T --> A[FastAPI]
    A --> BFF[BFF]
    BFF -->|WebSocket| U[Dashboard]

Command（Dashboard → Device）

flowchart RL
    U[Dashboard] -->|WS/REST| BFF[BFF]
    BFF --> A[FastAPI]
    A -->|MQTT QoS 1| B[EMQX]
    B --> D[Device]

EMQX Rule Engine 直寫 TimescaleDB，無 Event Streaming 中間層。延遲 <50ms，適合 1M 以下。>1M 需 dedup / event replay 時再加 Redpanda。

通訊協定與 Broker

MQTT v5 關鍵功能：Correlation ID、Shared subscriptions、Message expiry、Retained messages、LWT。

Python 後端：asyncio

Free Threading (PEP 703) 預計 Python 3.16 (~2028) 才正式。1M 連線是 I/O-bound，asyncio + uvloop (2-4x 提升) + 多 worker 進程是正解。

HAProxy → Uvicorn worker 1..N (asyncio + uvloop, ~50-100K conn/worker)
           └── Redis/NATS cross-process pub/sub

BFF (Backend for Frontend)

Backend 不直接面對前端 UI。BFF 層負責 WebSocket、API 聚合、Response 裁切。

flowchart LR
    subgraph BE["FastAPI Backend"]
        D[Device API]
        T2[Telemetry API]
        C[Command API]
    end
    BE -->|gRPC / REST| W[BFF-Web]
    BE -->|gRPC / REST| M[BFF-Mobile]
    W -->|WebSocket| WD[Dashboard]
    M -->|REST + Push| MA[Mobile App]

EMQX Rule Engine 資料寫入

不使用獨立 Event Streaming。Rule Engine 內建 PostgreSQL connector 直寫 TimescaleDB：

• SQL-like 過濾：SELECT * FROM "telemetry/#" WHERE payload.temperature > 50
• 訊息轉發、格式轉換、基本 dedup、Rate Limiting + 背壓

1M 設備需 event replay / 多消費者時，加入 Redpanda（Phase 4）。

三層儲存策略

Continuous Aggregates 是 Dashboard 查詢的關鍵 — 自動預聚合 1min/5min/1hr，查詢量降 600x。

CREATE MATERIALIZED VIEW sensor_1min
WITH (timescaledb.continuous) AS
SELECT time_bucket('1 minute', time) AS bucket, device_id,
       avg(temperature) AS avg_temp, max(temperature) AS max_temp
FROM telemetry GROUP BY bucket, device_id;

flowchart TD
    D[Devices] -->|MQTT| E[EMQX]
    E -->|Rule Engine| H[TimescaleDB]
    H -->|Aggregate| W[ClickHouse]
    W -->|Archive| C[S3 Parquet]
    H -->|Query| A[FastAPI]
    A -->|gRPC| B[BFF]
    B -->|WS| U[Dashboard]

成本估算： 1M 設備雲端 managed 約 ~$17-33K/月（AWS/GCP），詳見 Part 3 成本與風險。

技術選型總表

下一篇

• Part 2：安全與多租戶 — HTTPS/TLS、mTLS、Cert Rotation、RBAC、Topic ACL、DB 隔離
• Part 3：運維、成本與可靠性 — Rate Limiting、Edge Resilience、DR、Observability、成本估算、團隊風險
